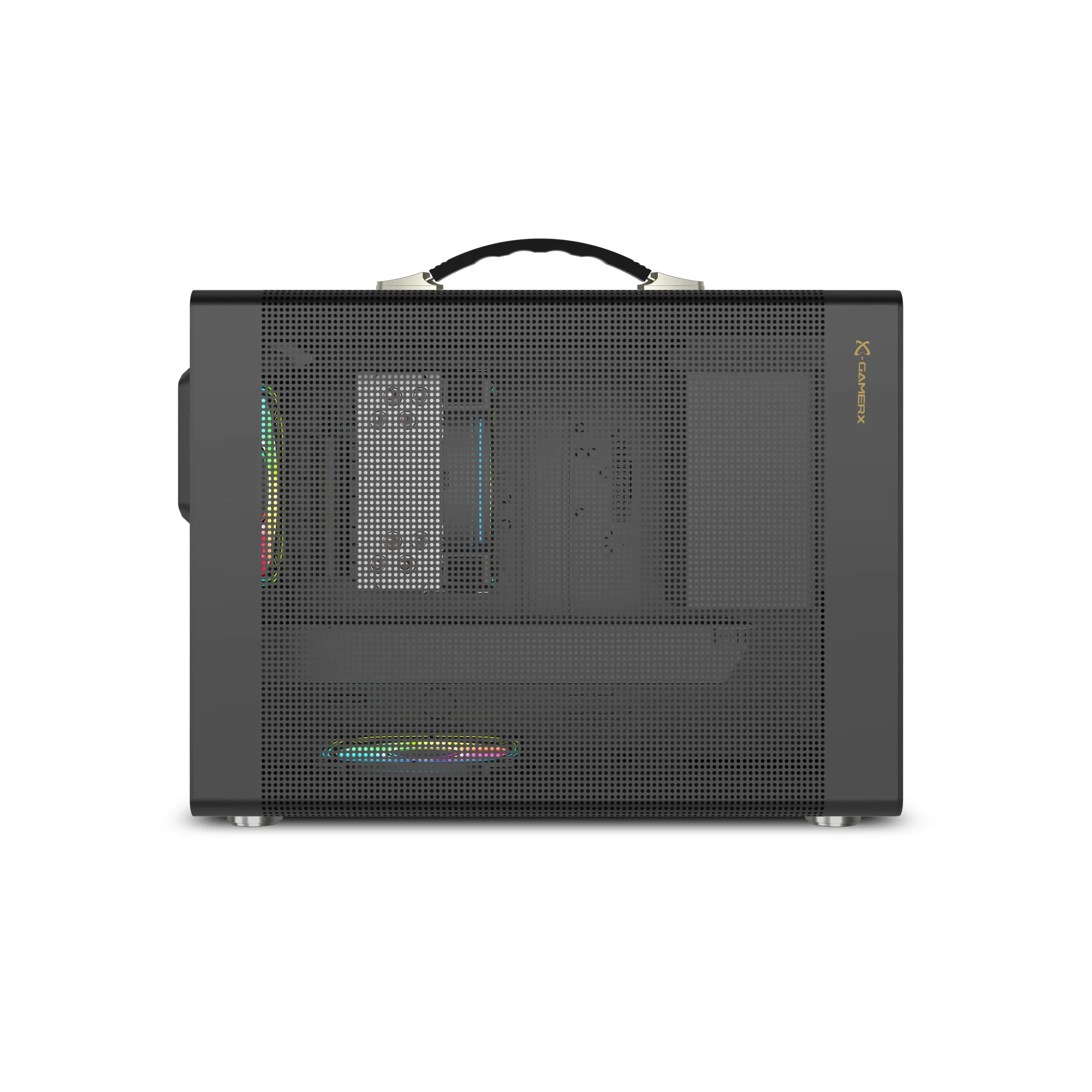

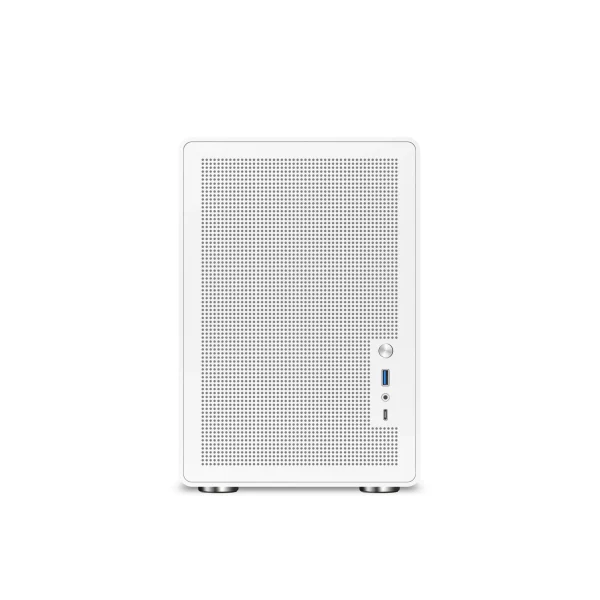

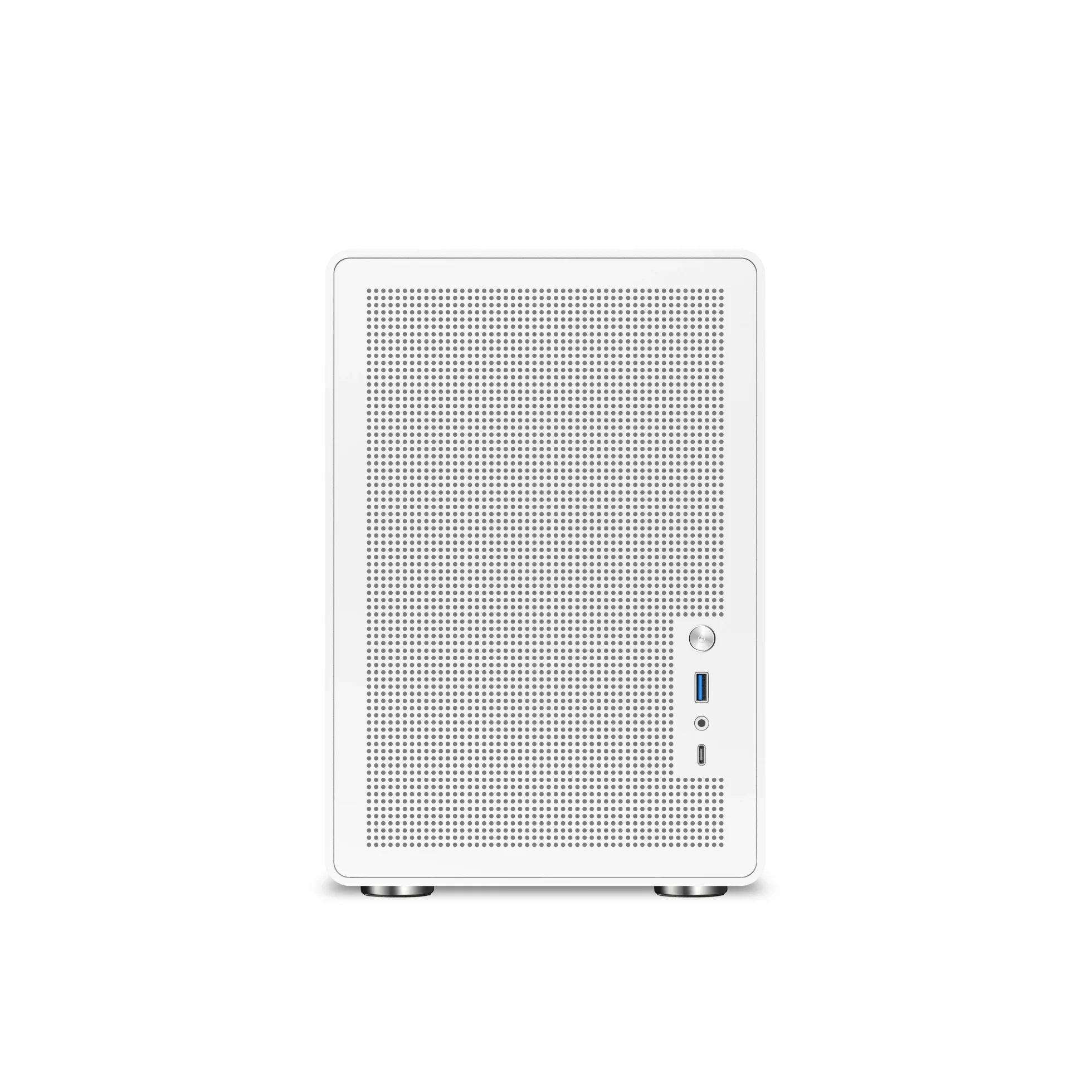

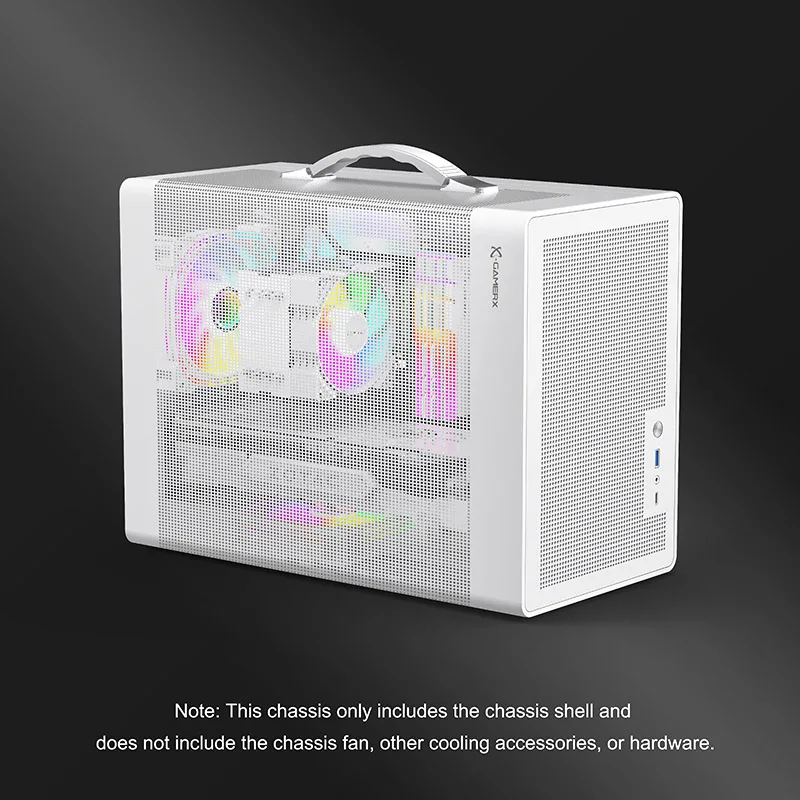

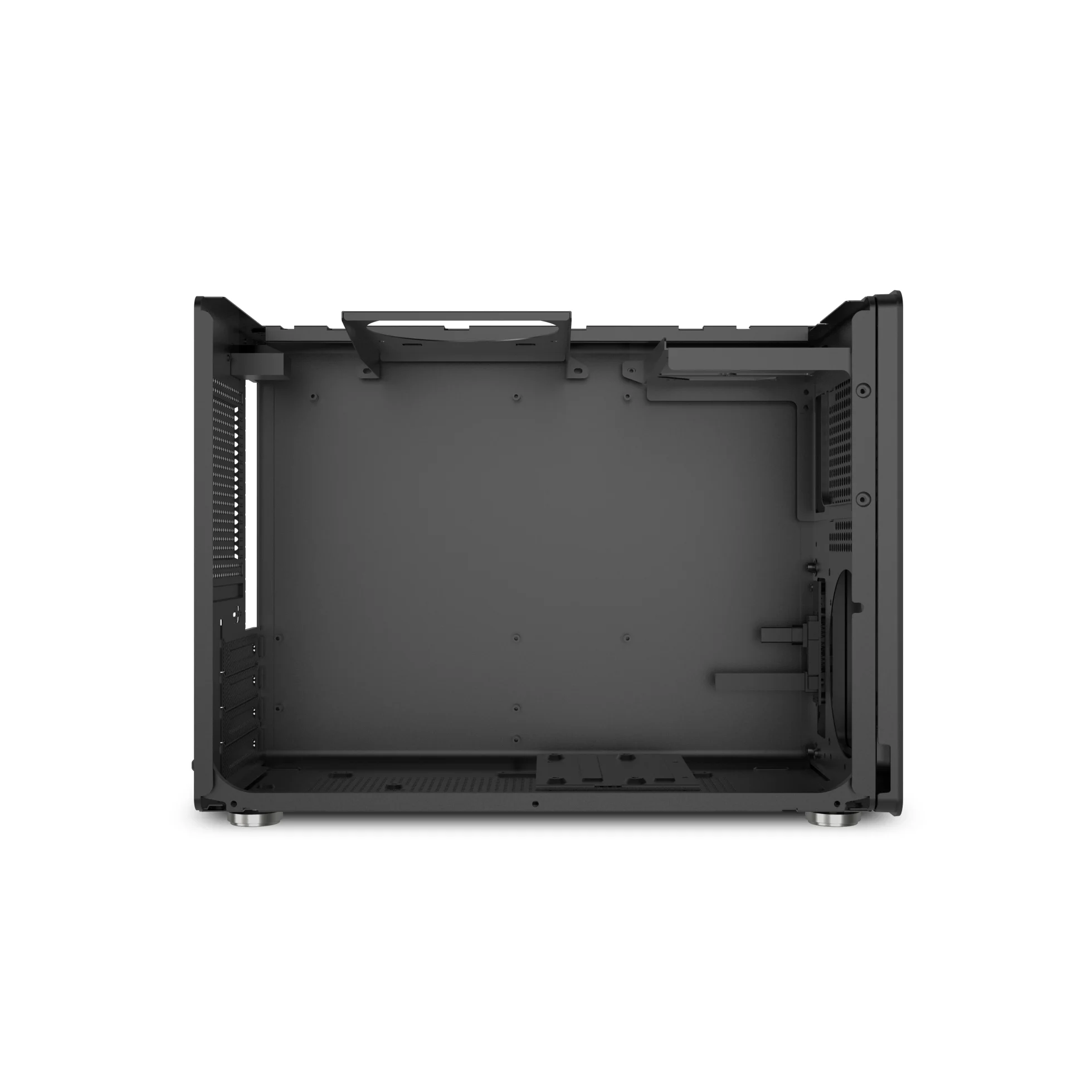

Compact Modular Gaming Chassis Pro
$44.37
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Product Specifications
- Product Name: P60 Mesh Version
- Cabinet Colors: Starry Black, Snowy White
- Product Size: 378mm (L) × 195mm (W) × 290mm (H)
- Material Thickness: SPCC (baking paint) 0.7mm thickened
- Power Supply Length:
- ATX Power Supply: 150mm × 140mm × 86mm
- SFX Power Supply: 125mm × 100mm × 64mm
- CPU Heat Sink Height Limit: 168mm
- Graphics Card Length Limit:
- 350mm (with front panel, without locking fan)
- 335mm (with front panel, after locking the fan)
- Applicable Motherboards: Micro ATX / Mini ITX
- Panel Interfaces: USB 3.0, Type-C, HDAudio
- Expansion Drives:
- 3.5″ HDD × 1, 2.5″ SSD × 2, or
- 3.5″ HDD × 1, 2.5″ SSD × 1 (with bottom locked fan)
- PCI Slots: 4
- Cooling System:
- Front: 120mm fan × 1
- Top: 120mm fan × 1 (fan rack required)
- Bottom: 120mm fan × 1 (optional)
- Rear: 120mm fan × 1
- Note: It is recommended to use an SFX power supply for graphics cards with a length exceeding 260mm.
| Weight | 4.564 lbs |
|---|---|
| Dimensions | 45 × 35 × 26 in |
| Hign-concerned Chemical | None |
| With Power Supply | no |
| With Fan | no |
| With Side Panel Window | YES |
| Power Supply Mounted | Top |
| Dust Filters | FRONT, Top, REAR |
| RGB Support | Fixed Color |
| 120mm Fan Options | 4 |
| Internal 2.5 | 1 |
| Internal 3.5 | 1 |
| Max GPU Length | 350mm |
| Max CPU Cooler Height | 168mm |
| Max PSU Length | 150mm |
| Case Weight | 5kg |
| Case Size | 378 * 195 * 290mm |
| Power Model | ATX |
| Chassis Type | Desktops |
| Front Ports | Type-c, USB3.0, HDAUDIO |
| Application | Desktop |
| Form Factor | MicroATX, Mini-ITX, ITX |
| Material | STEEL, aluminum |
| Model Number | P60 |
| Type | Horizontal |
| Brand Name | POWER TRAIN |
| Origin | Mainland China |
