Compact Core Precision Mini Case
$35.55
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
X100 Mid-Tower PC Case
Micro-ATX / Mini-ITX | USB 3.0 & Type-C (Optional) | Tempered Glass Left Side Panel
Important Note
🚫 This product includes only the case shell. It does not include fans, cooling equipment, or other computer hardware.
Product Specifications
- Model Name: X100

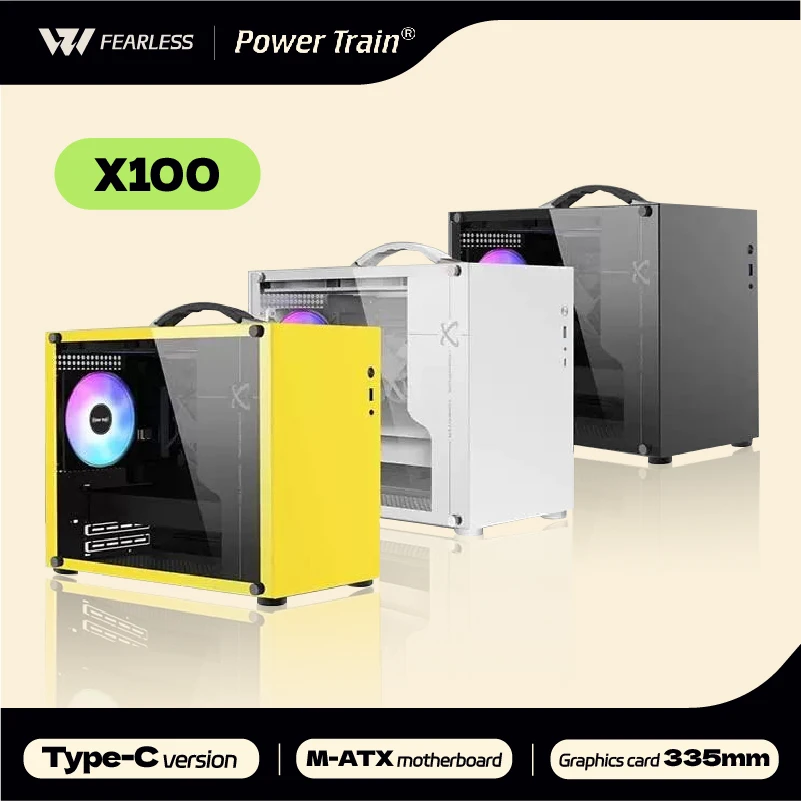

- Cabinet Colors: Black, White, Yellow

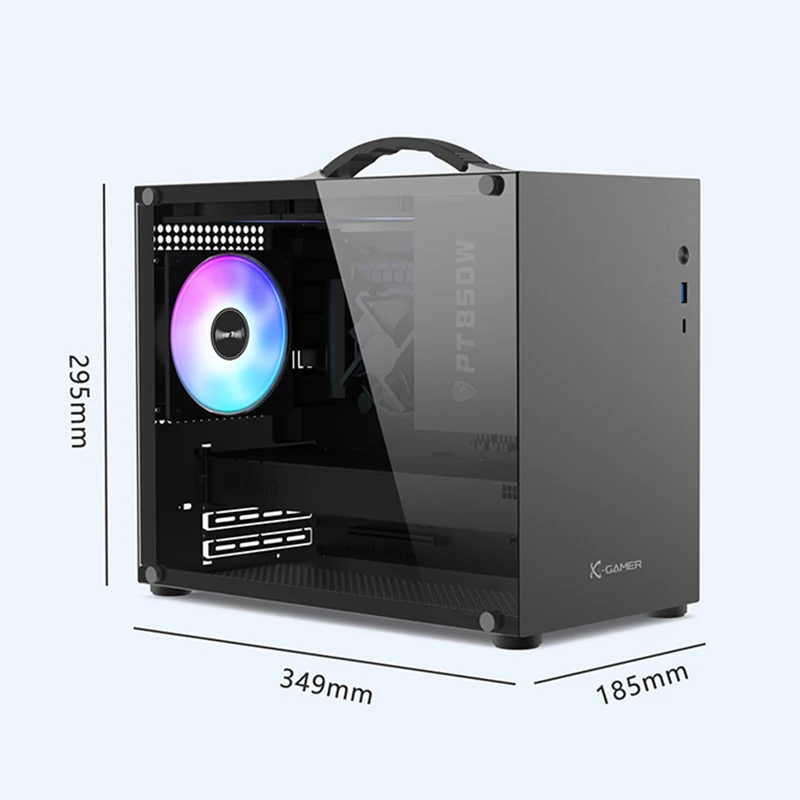

- Case Dimensions: 349 × 185 × 295 mm
- Material Thickness: SPCC (1.0mm, baking paint finish)
- Motherboard Compatibility: Micro-ATX / Mini-ITX
Power Supply Compatibility
- ATX Power Supply: 150 × 140 × 86 mm
- SFX Power Supply: 125 × 100 × 64 mm

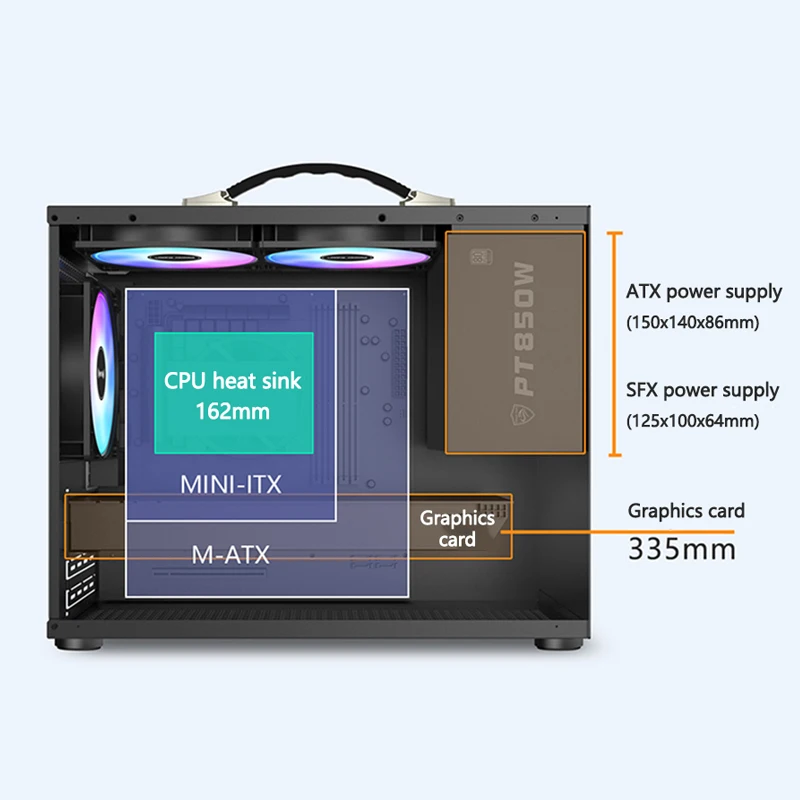

Component Compatibility
- CPU Cooler Height Limit: 162 mm
- GPU Length Limit: 335 mm
Storage Options
- 3.5” HDD: 1 (Max)
- 2.5” SSD:
- Up to 2 (if using a longer graphics card)
- Up to 5 (if using a shorter graphics card)
Expansion & Cooling
- PCI Slots: 4

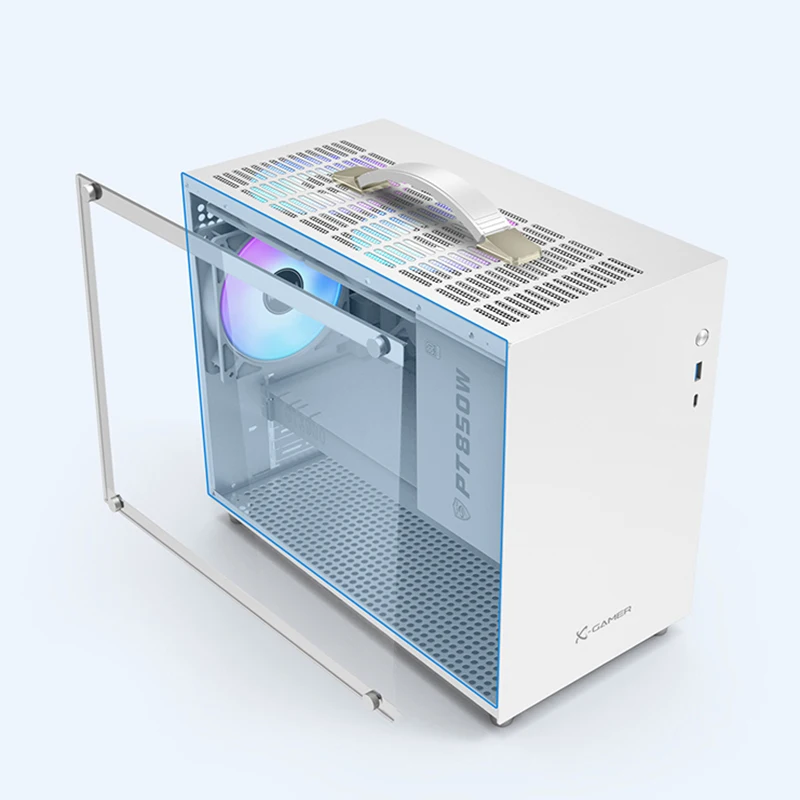

- Tempered Glass Panel: Left side
- Cooling System (Optional Fans):
- Top: 120mm fan × 2
- Rear: 120mm fan × 1
- Bottom: 120mm fan × 2
I/O Ports
- Power Button (On/Off Key)
- USB 3.0 × 1
- Type-C (Optional)
| Weight | 3.929 lbs |
|---|---|
| Dimensions | 42 × 36 × 26 in |
| Hign-concerned Chemical | None |
| With Power Supply | no |
| With Fan | no |
| With Side Panel Window | YES |
| Power Supply Mounted | Top |
| RGB Support | NO RGB |
| 120mm Fan Options | 5 |
| Internal 2.5 | 2 |
| Internal 3.5 | 1 |
| Max GPU Length | 335mm |
| Max CPU Cooler Height | 162mm |
| Max PSU Length | 150mm |
| Case Weight | 3.65kg |
| Case Size | 349X185X295mm |
| Power Model | ATX |
| Series | X100 |
| Chassis Type | Desktops |
| Front Ports | On/Off key, USB3.0 * 1, Type-C optional |
| Application | Desktop |
| Form Factor | MicroATX, ITX |
| Material | STEEL, others |
| Model Number | X100 |
| Type | Horizontal |
| Brand Name | POWER TRAIN |
| Origin | Mainland China |
Reviews
There are no reviews yet.
